FT-707 repair (7) External mic

Ok, this time the FT-707 is not the usual suspect.

I started testing transmission since reception looks stable now (more on it on latter posts).
First test showed the the mic ptt was not working, it was "wired to the FT-707" according to the vendor.... let's have a look:




Wrong, it was not wired to the FT-707, all of the wires were badly soldered, with some loose strands and one of the nedeed pins (7) had not even a small mark showing signs of any soldering... oh well...

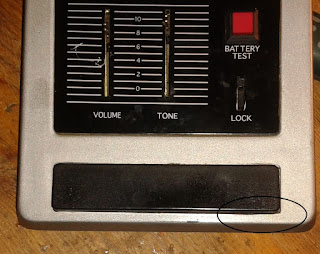

After rebuilding and some cleaning I notice that it was a litle hard releasing the PTT switch. Let's open the mic to see if it is the release spring worn out or some other issue. After testing I notice the black plastic from the PTT was rubbing a litle against the outer case so I filled inside a little bit..



 ..and now, much better, honestly the MIC in fact has a good internal/electronic design but the mechanical part that's another story. That's poor quality control or the plastics expanded over time which is also likely.


 And after some small cosmetic cleaning here it his:



On to testing the radio again... less than 5w out... this is the first time I tough: it goes for parts... well it was ALC preventing more power, I didn't gave up, and after some tunning it's now "limited" to around 50 during this testing phase, I got easily the, promised by Yaesu, 100w during tests.
Still have to test again in SSB with the mic since I was using CW/AM and only the MIC PTT or MOX.
The other set (the blue color one) it's the same from what I've seen, also I suspect a cap or a transistor will explode shortly since there's some background noise on key down... will see!

Have a nice week!

Saturday, May 30, 2015

FT-707 repair (6) Display "dot"

On last post I noticed the decimal dot not working in one of the FT-707 units.



I was hoping for a simple cable broken and not the 7 seg display... it was the cable!

Now it's fixed:





Here's the reason, cable broken on the endpoint, the "missing" one is colored grey coming from the counter unit. The X in the picture marks the spot for the missing "dot" cable:

Had to loosen the from panel a litlle to manage to solder the cable there since the space is short.

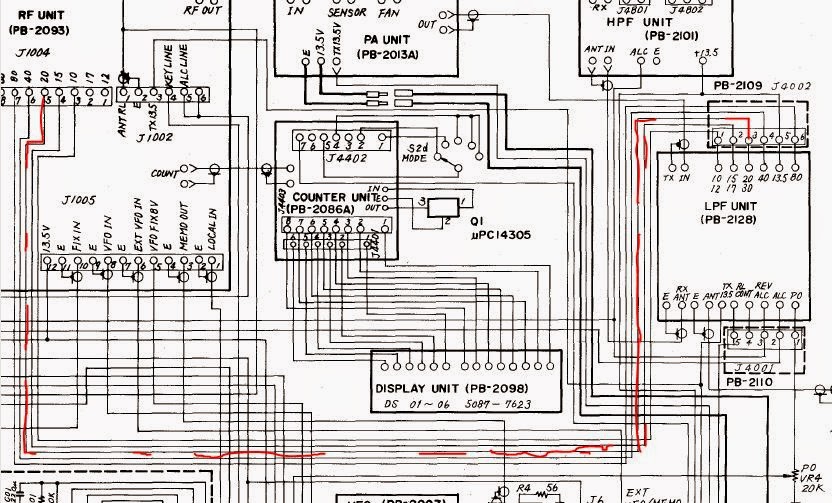

 Here's for future reference, if deeper troubleshooting needed, the interconnection between the display counter unit and the 7 segments LED display in the front panel:


 The output of the counter unit to the LED display
 The LED unit in the from panel, wires are soldered directly from the PCB to the two plugs on the counter unit:

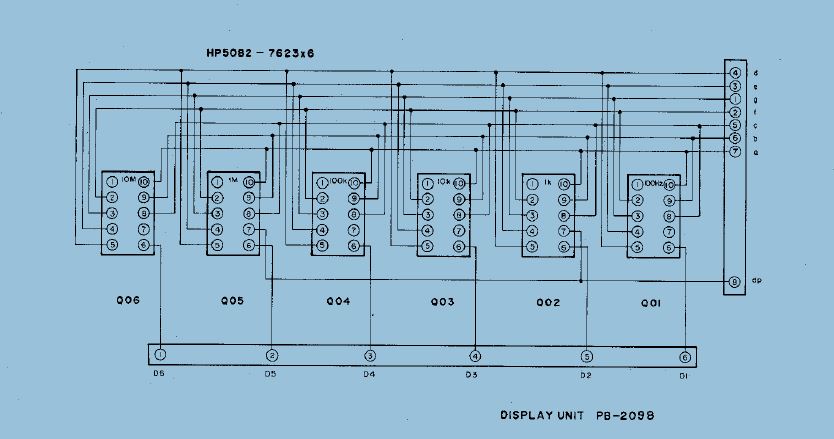

The pint out for the 7 seg LED display used in this radios, I think are similar to FT-107 and others.
