FM for the Bitx ? II

More ideas on easy and cheap FM add on (RX) for the BITX transceiver...

With an TA7303 and a 10Mhz crystal between pin 6 and 7 ?...
The original idea uses an ceramic element...

The cheapest TA7303 I could find costs 1.03 Eur...

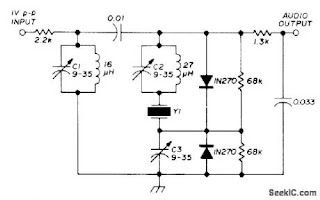

And a circuit similar to one I've tested on another post:


The above one is a little bit more tunable and probably uses more easy to find components...without a limiter in front you probably "get" AM as a bonus!

I have to test...
